Description
The SCOTT Scale 970 comes fully equipped with a SRAM Eagle 12-speed drivetrain and a RockShox fork, along with Remote Lockout technology to allow for multiple travel settings to adjust to riding conditions.
SPECIFICATIONS
Frame: Scale Alloy 6061 Custom Butted Tubing Boost QR 5x141mm / Tapered Headtube / BB92Internal Cable Routing / replaceable hanger
Fork: RockShox Judy Silver TK Solo Air46mm offset / Tapered Steerer / Reb. Adj. Lockout / 100mm travel
Remote System: SCOTT RideLoc Remote
Rear Derailleur: SRAM NX Eagle 12 Speed
Shifters: SRAM SX Eagle Trigger

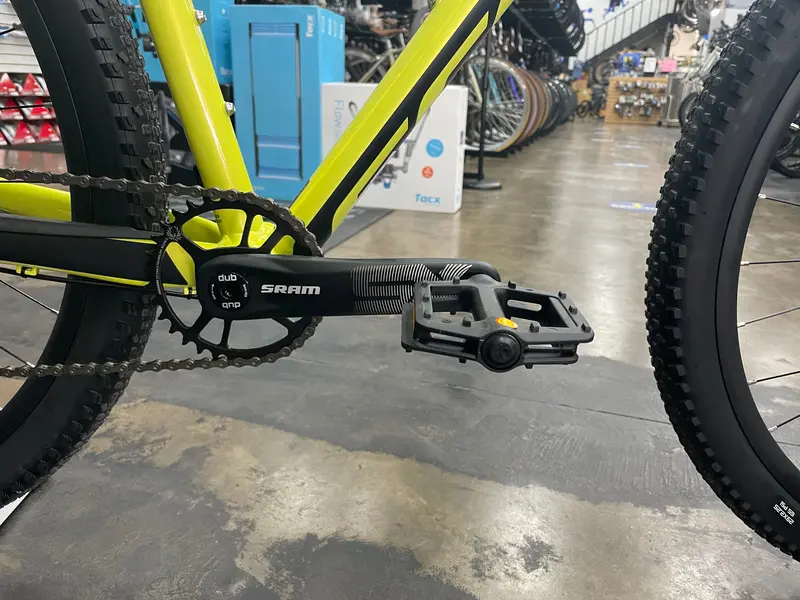

Crankset: SRAM SX Eagle DUB Boost32T
Bottom Bracket: SRAM DUB PF 92 MTB / shell 41x92mm
Chain: SRAM CN SX Eagle
Cassette: SRAM SX-PG1210 / 11-50 T
Brakes: Shimano MT200 Disc
Rotors: Shimano SM-RT10 CL / 180/F and 160/R
Handlebar: Syncros Alloy 6061T shape Flat / 9° / 740mm
Stem: Syncros Alloy 6061oversized 31.8mm / 1 1/8″ / 6° angle
Seatpost: Syncros / 31.6x400mm
Saddle: Syncros Belcarra Regular 2.5
Headset: Syncros OE Press Fit E2 / Tapered 1.5″-1 1/8″OD 50/62mm / ID 44/56mm
Hub (Front): Formula CL-51
Hub (Rear): Formula CL-2241 / QR 5x141mm
Spokes: Stainless Black 15G / 1.8mm
Rims: Syncros / 32H
Tires: Maxxis Rekon Race / 2.25″ / 60TPI
Pedals: Femin FP873ZU
Approximate Weight: 29.10lbs / 13.20kg (without Pedals & with tubes)
Maximum System Weight: 282.19lbs / 128 kg The overall weight includes the bike, the rider, the equipment, and possible additional luggage.
GEOMETRY
| A | head tube angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° | |||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| B | head tube length | 100.0 mm | 100.0 mm | 115.0 mm | 125.0 mm | 135.0 mm | |||||||||||||
| C | top tube horizontal | 575.0 mm | 600.0 mm | 620.0 mm | 640.0 mm | 660.0 mm | |||||||||||||
| D | standover height | 748.0 mm | 776.0 mm | 805.0 mm | 840.0 mm | 874.0 mm | |||||||||||||
| E | BB offset | -58.0 mm | -58.0 mm | -58.0 mm | -58.0 mm | -58.0 mm | |||||||||||||
| F | BB height | 312.0 mm | 312.0 mm | 312.0 mm | 312.0 mm | 312.0 mm | |||||||||||||
| G | wheel base | 1,092.1 mm | 1,118.0 mm | 1,138.2 mm | 1,159.0 mm | 1,211.0 mm | |||||||||||||
| H | BB center to top tube center | ||||||||||||||||||
| I | BB center to top of seat tube | 390.0 mm | 440.0 mm | 480.0 mm | 530.0 mm | 580.0 mm | |||||||||||||
| J | seat angle | 73.6 ° | 73.6 ° | 73.6 ° | 73.6 ° | 73.6 ° | |||||||||||||
| K | chainstay | 440.0 mm | 440.0 mm | 440.0 mm | 440.0 mm | 440.0 mm | |||||||||||||
| L | reach | 396.8 mm | 421.8 mm | 437.7 mm | 455.0 mm | 492.2 mm | |||||||||||||
| M | stack | 605.3 mm | 605.3 mm | 619.4 mm | 628.7 mm | 638.1 mm | |||||||||||||
