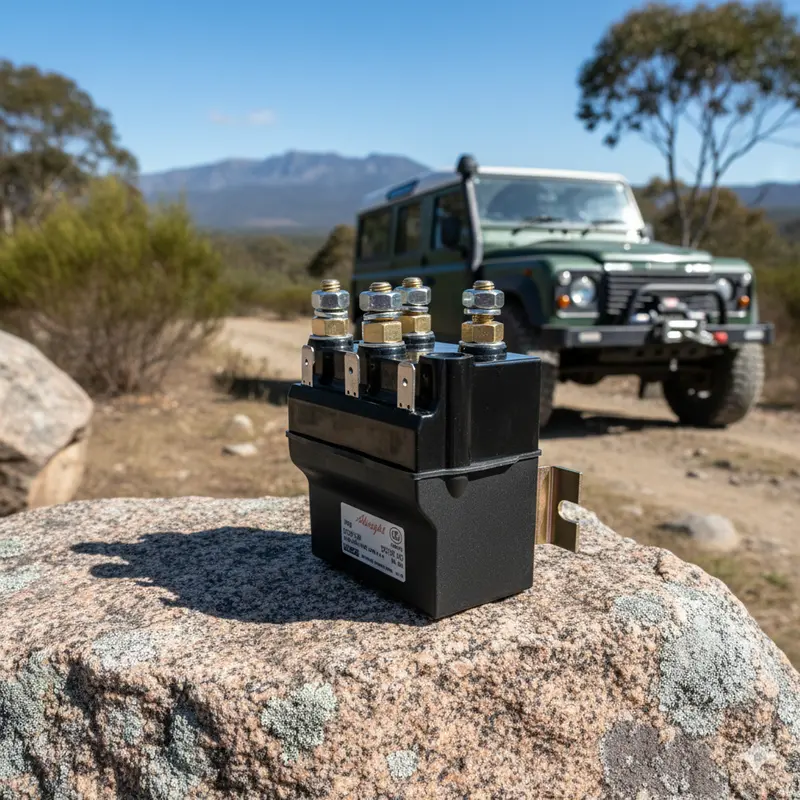

Albright DC 88P Heavy-Duty Winch Solenoid

Description

Sherpa 4×4 is proud to be the Australian distributors for Albright International DC contactors and winch solenoids. An ideal upgrade to your existing Warn winch or as a replacement for your Sherpa winch. Note: All Sherpa winches come fitted with an Albright solenoid as standard.

• Genuine Albright DC88P 1000 Series winch solenoids.

• Overview
• Technical Details
• Data Sheets

• This is the current model Albright winch solenoid, the DC88P 1000 Series which supercedes the DC88P. With over 70 years experience in manufacturing contactors the Albright DC88P series of winch solenoids are the best on the market. Their superior duty cycle and water proofing makes them ideal for use in offroad conditions. Capable of withstanding high current loads these solenoids are suitable as a replacement solenoid for any of the Sherpa 4×4 winches.

  • Available in 12V or 24V
  • Dual direction solenoid compatible with most winches including various Warn models
  • Compatible with all Sherpa 4×4 winches
  • Compact monoblock construction
  • Suitable for interrupted and uninterrupted loads
  • Compatible with wireless remotes
  • Ideal for series wound and permanent magnet DC motors
  • Bi-directional for winches with release and retrieve motors (F1 & F2)

• Solenoid Specification	Value
  Max Current	800 Amps
  Voltage	12 Volt or 24 Volt DC models available
  Winch Loads	4,500lb to 18,000lb
  Dimensions	Overall Height = 97mm Main Body Height = 79mm Overall Width = 100mm Overall Depth = 61mm Terminal Height = 18mm Terminal Size = M8
  Warranty	12 Months

  For duty cycles at various loads please see the data sheet below.

  Albright Winch Solenoid Data Sheet



• Click here for Data Sheets and Manuals
